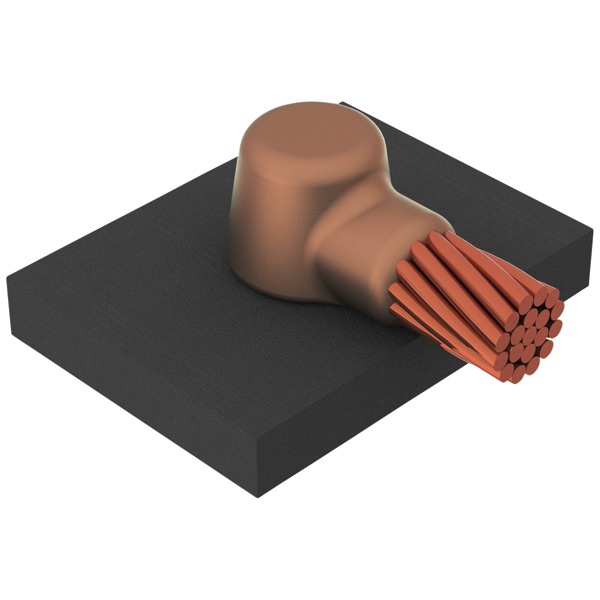

Horizontal Cable to Steel Molds, CATHODIC nVent ERICO Cadweld Cathodic Connections are the preferred method of exothermically welding cathodic protection anode leads to pipes (steel or cast iron), tanks, and other structures. Cathodic protection systems are designed to prevent galvanic corrosion along a pipeline or in various structures. nVent ERICO Cadweld Cathodic Connections use a special welding material alloy to minimize heat effect on the steel, which is especially important on thin wall and high-str
FEATURES Forms a permanent, low resistance connection Provides a molecular bond nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor Portable installation equipment with no external source of power required Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections Connections can be visually inspected CAHAA-1G CAHA Mold #14-#10 sol, or #8 sol or stranded, or #6 sol to Flat (4" & Larger pipe) Horiz Pipe CAHAA-1GA CAHA Mold #14-#10 sol, or #8 sol or stranded, or #6 sol to 3/4 to 3 1/2" pipe Horiz Pipe CAHAA-1H CAHA Mold #6 str to Flat( 4" & Larger) Horiz Pipe CAHAA-1HA CAHA Mold #6 str to 3/4" to 3 1/2" Horiz Pipe CAHAA-1L CAHA Mold #4 Str to Flat (6" & Larger) Horiz Pipe CAHAA-1V CAHA Mold #2 str to Flat (16" & Larger) Horiz Pipe
